Modular Steel ESD Benches

Modular Steel ESD Benches

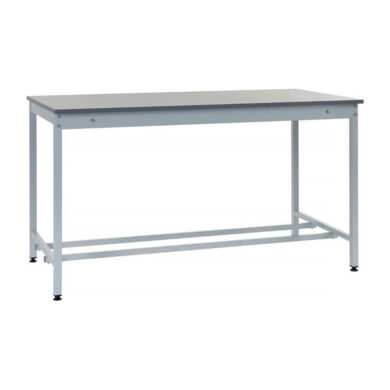

Robust, practical ESD benches that have become the standard style throughout UK manufacturing. Available with traditional leg frame or cantilever frame design.

These modular steel benches have been designed to meet the static control requirements of the electronics industry and can be fitted with a comprehensive range of accessories to suit electronic and light engineering requirements.

The bench frame is manufactured from light grey powder-coated steel and the bench top surface is static dissipative laminate. NeoStat® C2 static dissipative rubber or non-ESD bench top surfaces can also be supplied. These benches are supplied in KD form for simple self-assembly.

Standard bench sizes are: 1200, 1500 or 1800mm wide x 750 or 900mm deep x 840mm high.

  • Two wrist strap points
  • ESD wiring kit with instructions
  • Choice of dissipative bench top surfaces
  • Light grey powder coated frame
  • Large range of accessories
  • Adjustable feet for levelling
  • Simple assembly
  • Safe working load 250kg (UDL)

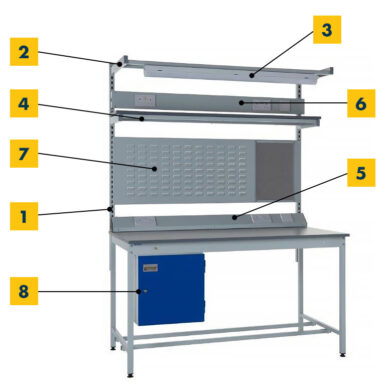

The benches and accessories featured here represent the most commonly ordered configurations. Alternative sizes and additional accessories are also available, including:

  • 900mm bench height
  • 80mm diameter cable ports
  • Lower shelves for the leg frame bench
  • Monitor support arms
  • Welded frames
  • Modesty panels
  • Wrist straps and leads
  • Dissipative bench mats
