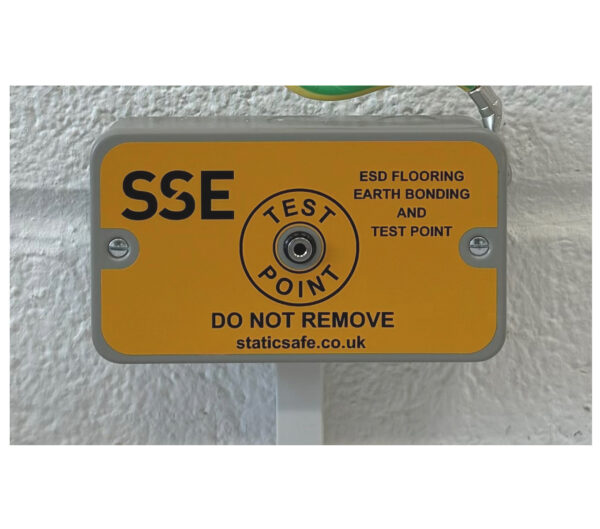

ESD Floor Earth Bonding and Test Point Box

Product code: 36014

ESD Floor Earth Bonding and Test Point Box for safe, permanent grounding of ESD floors with a test point for ESD floor tests.

Static dissipative and conductive flooring materials are typically laid on a grid of copper strip. The copper strip is terminated in the bonding box which is then connected to earth. This provides a permanent connection to earth and a test point for floor resistance to ground tests.

Click here for SSE’s flooring options

Browser not supported

We recommend that you use the latest version of Chrome, Edge or Firefox.

£35.00

Technical Specification

  • Eliminates the risk of accidental disconnection of the ESD floor compared to a lead to press stud and plug grounding
  • Robust powder coated steel back box and front plate with low profile 4mm banana plug connection
  • Includes a high visibility label on the front plate
  • Easy termination to the copper grid by an internal crocodile clip and to the mains earth by a single screw terminal*
  • Conforms to BS EN 61340-5-1 in respect to grounding an ESD floor
  • Dimensions: 140mm (W) x 80mm (H) x 50mm (D)
  • Made in the UK at SSE

*SSE recommends connecting of the ESD Floor Earth Bonding and Test Point Box is done by an electrician
