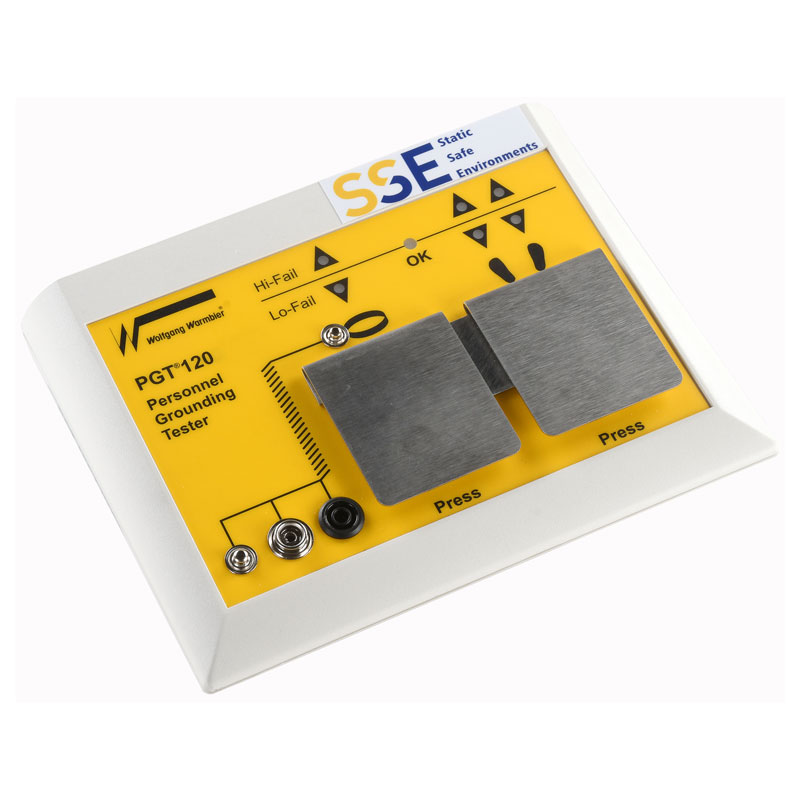

Wolfgang Warmbier PGT120 Personnel Grounding Tester
The Wolfgang Warmbier PGT120 is a high quality, mains or battery powered personnel grounding tester which carries out wrist strap, right and left shoe testing simultaneously. The wrist strap and shoe test results are indicated with audible and visual signals.
A relay with a dry contact provides a connection to a door or turnstile opening system if required.
Footwear-only testing can be performed in series without the need to press the button (hands-free mode).
DIP switches on the tester allow for a test voltage selection of 30v, 50v or 100v and footwear resistance upper limit selection of 20 MΩ, 35MΩ, 70MΩ or 100MΩ.
Supplied with a footplate, full operating instructions, calibration certificate and UK power supply
