Conductive ESD Castors Set of 4
Conductive ESD Castors Set of 4, ideal for converting round tube static shelving bays into mobile bays.
Solid rubber electrically conductive wheel with a load capacity of 70kg per castor up to 4 km/hr.
Please note when anti-static castors are fitted to shelving, the load capacity of the bay may be reduced.
Guide to calculating load capacity of castors
As a general guide take the load capacity required and divide by 3 (as uneven load or floors may mean not all 4 castors make contact with the floor to spread the load evenly). This will be the load capacity required by each castor.
To calculate the maximum load capacity of the castors being used, multiply the load per castor by 3.
Please note what the castors are fitted to, how they are fitted, what is being transported, and the surface used on, may also have an impact on load capacity. Users should always make their own assessment to a safe load capacity.
Browser not supported
We recommend that you use the latest version of Chrome, Edge or Firefox.
£45.00
Technical Specification
Key Features:
- Solid rubber electrically conductive wheel
- Zinc plated swivel fork
- Zinc plated roller bearing

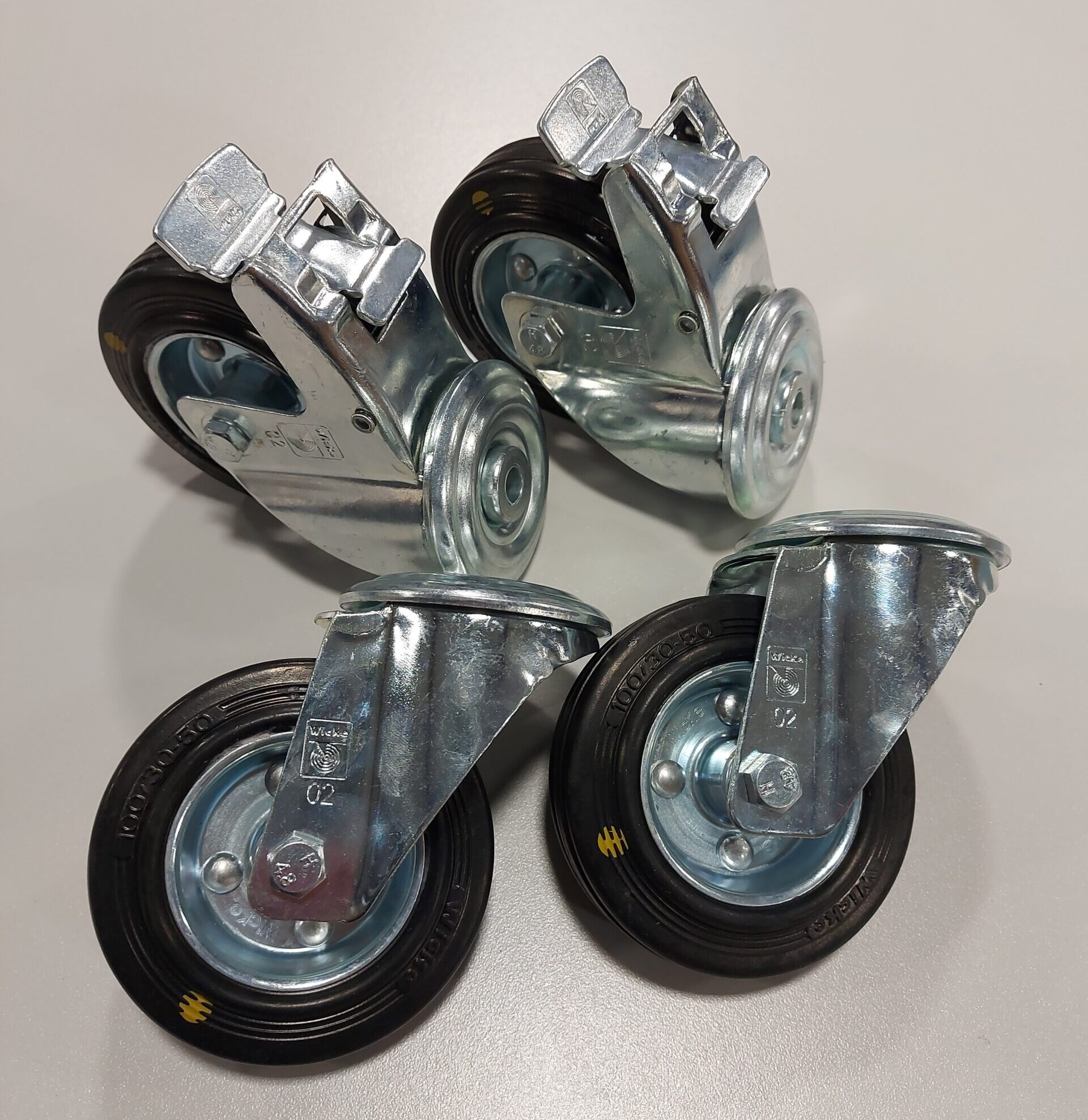

- Set includes two 100mm diameter swivel castors and two 100mm diameter braked swivel castors

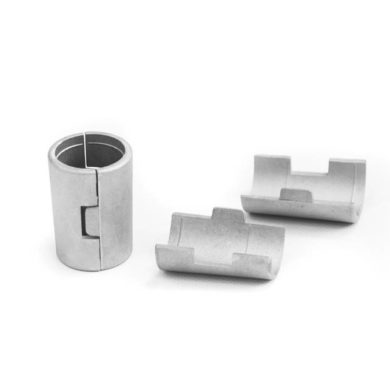

- Includes 4 expanders (21.5mm to 24.0mm) for fitting to round tube shelving
- Load capacity of 70kg per castor up to 4 km/hr
