Kitehawke ESD Workbenches

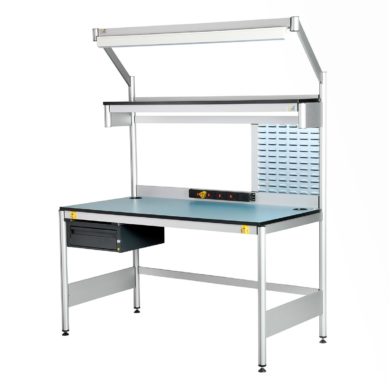

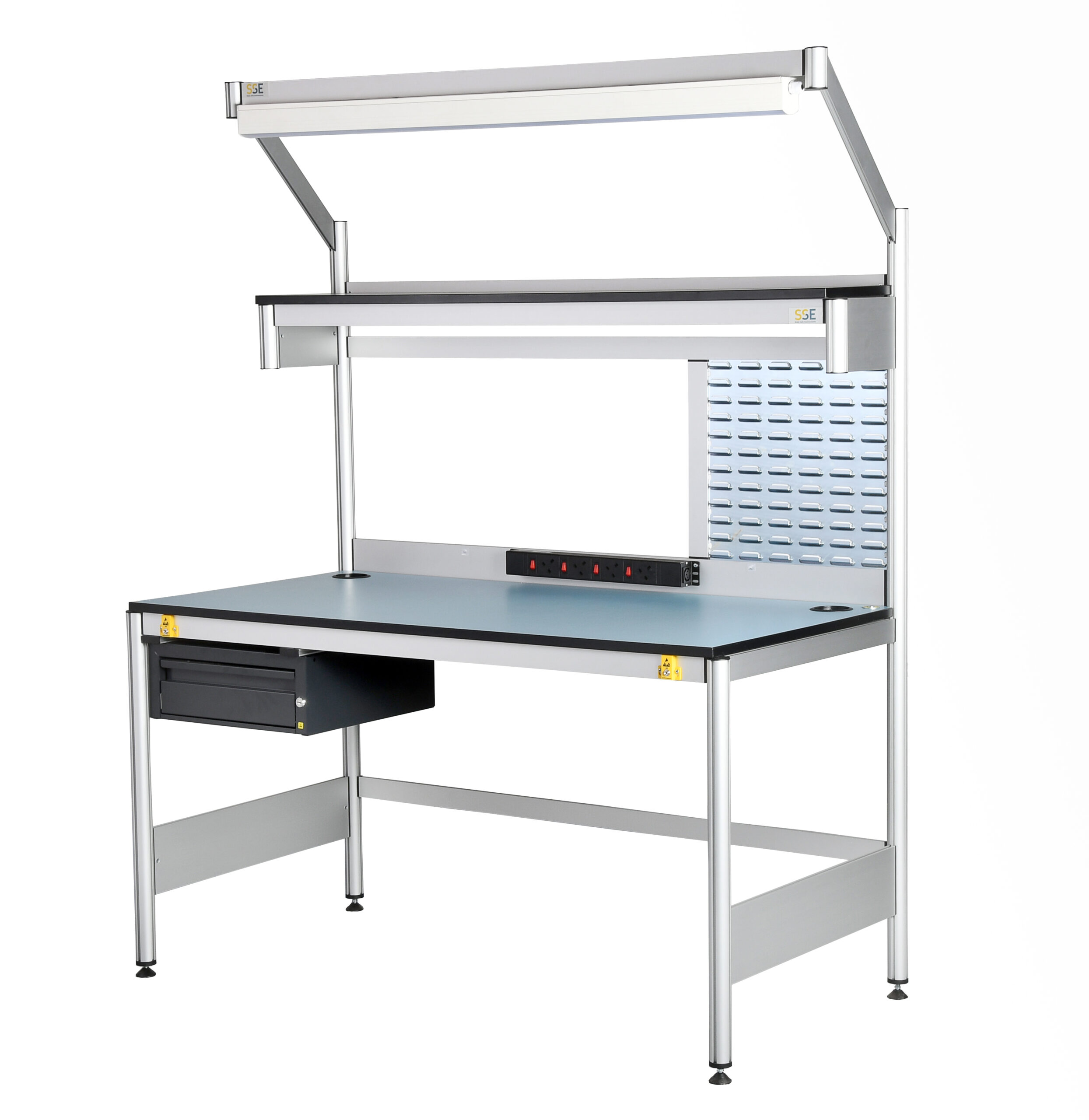

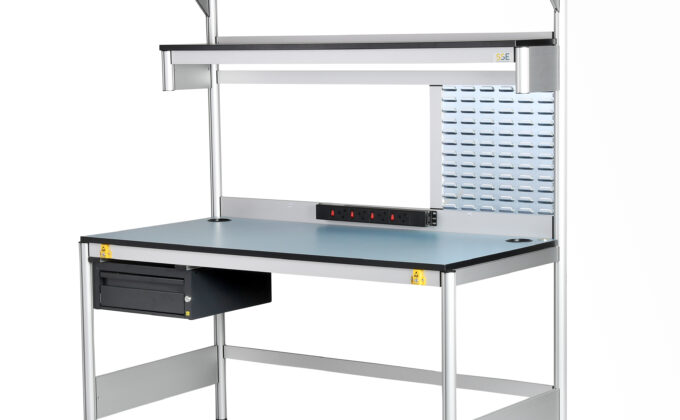

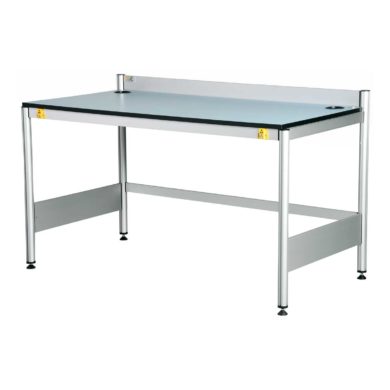

Kitehawke APS inspection ESD bench

Static Safe Environments’ Kitehawke ESD workbenches have been designed and developed for use in hi-tech areas such as the electronics, research, medical equipment and pharmaceutical sectors, primarily to control Electrostatic Discharge (ESD).

The Kitehawke ESD bench framework is manufactured from silver-anodised aluminium profiles to create a bench which is not only robust and light, but also distinctive and modern looking. The aluminium construction means that the framework is non-charging – ideal for preventing build-up of static charge, critical in an EPA.

Work tops are available in either a blue or grey NeoStat® dissipative rubber or in a grey dissipative laminate, bonded onto an 18mm core with black PVC edging and balancer to the underside. Tops manufactured to different specifications can be supplied, including non-ESD tops.

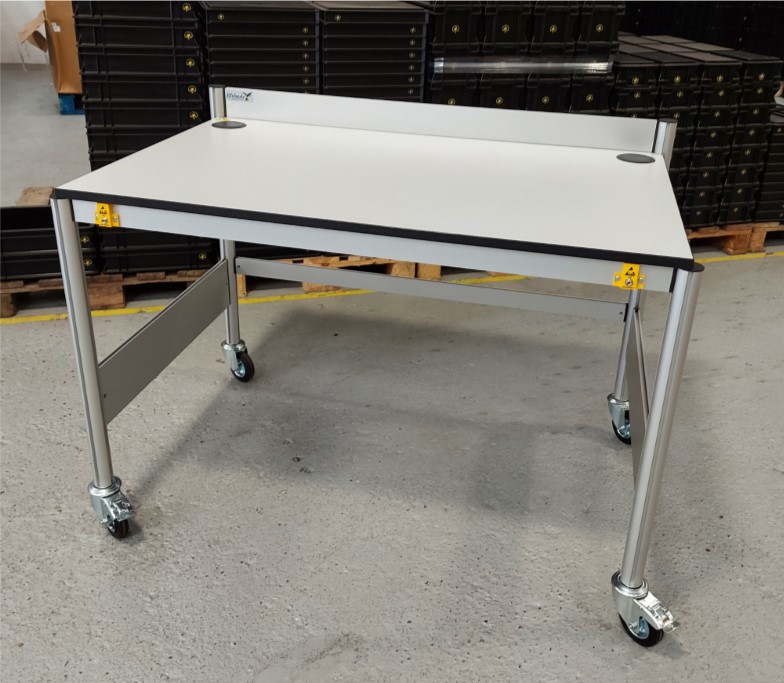

Standard Kitehawke ESD bench module sizes are 1200, 1500 and 1800mm wide x 750 and 900mm deep x 840 and 900mm high. (Alternative sizes can also be manufactured).

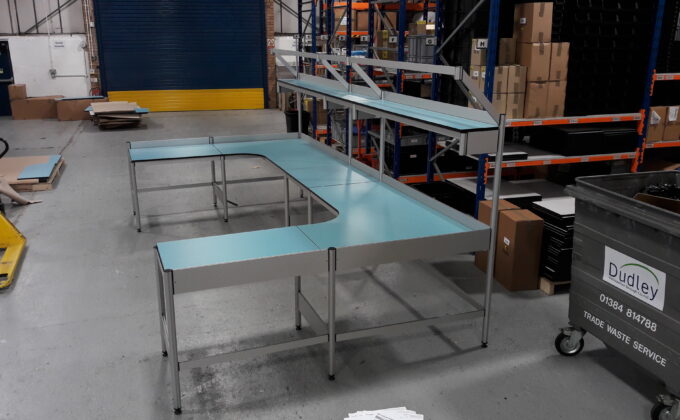

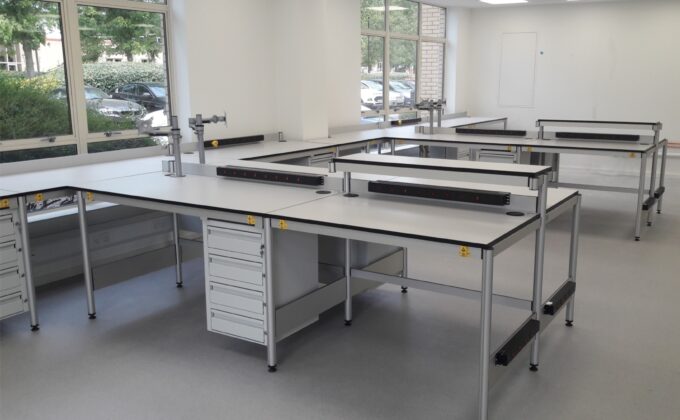

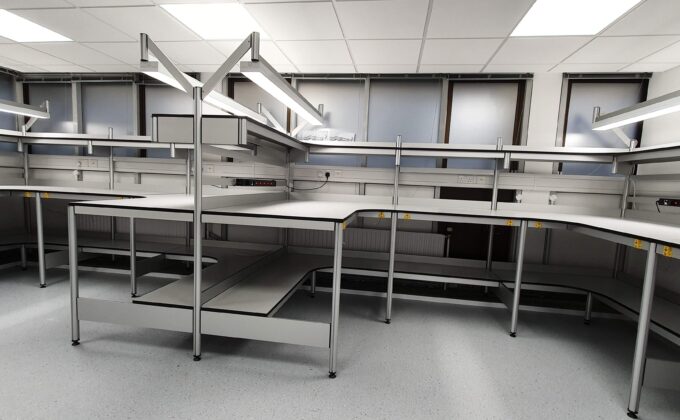

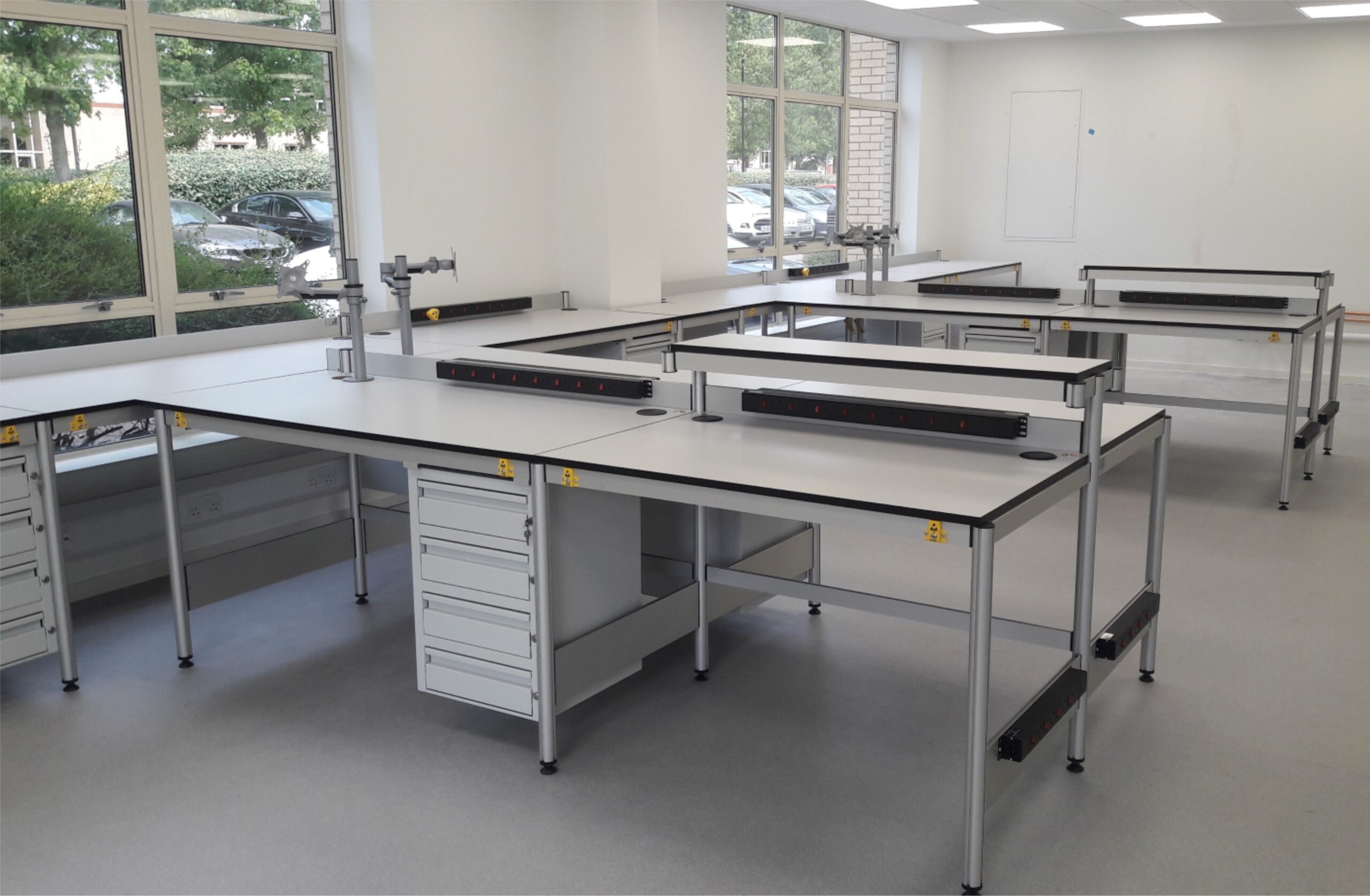

The Kitehawke design means that a continuous work surface can be achieved by making use of common leg frames and single piece corner units can be achieved.

All Kitehawke ESD workbenches are supplied with a work top earth bonding point and two wrist strap points which are connected to the earth bonding point through ’wire-free’ connections under the work top.

Kitehawke ESD Bench Features

Grounding point cable port radius detail
  • Specifically designed to control ESD
  • Tested for conformance to BS 61340
  • Manufactured at SSE

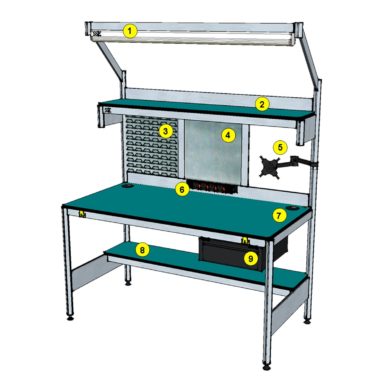

  • Large range of accessories
  • Non-charging aluminium framework
  • ‘Wire-free’ ESD connection
  • Choice of work top materials
  • Modern, hi-tech appearance

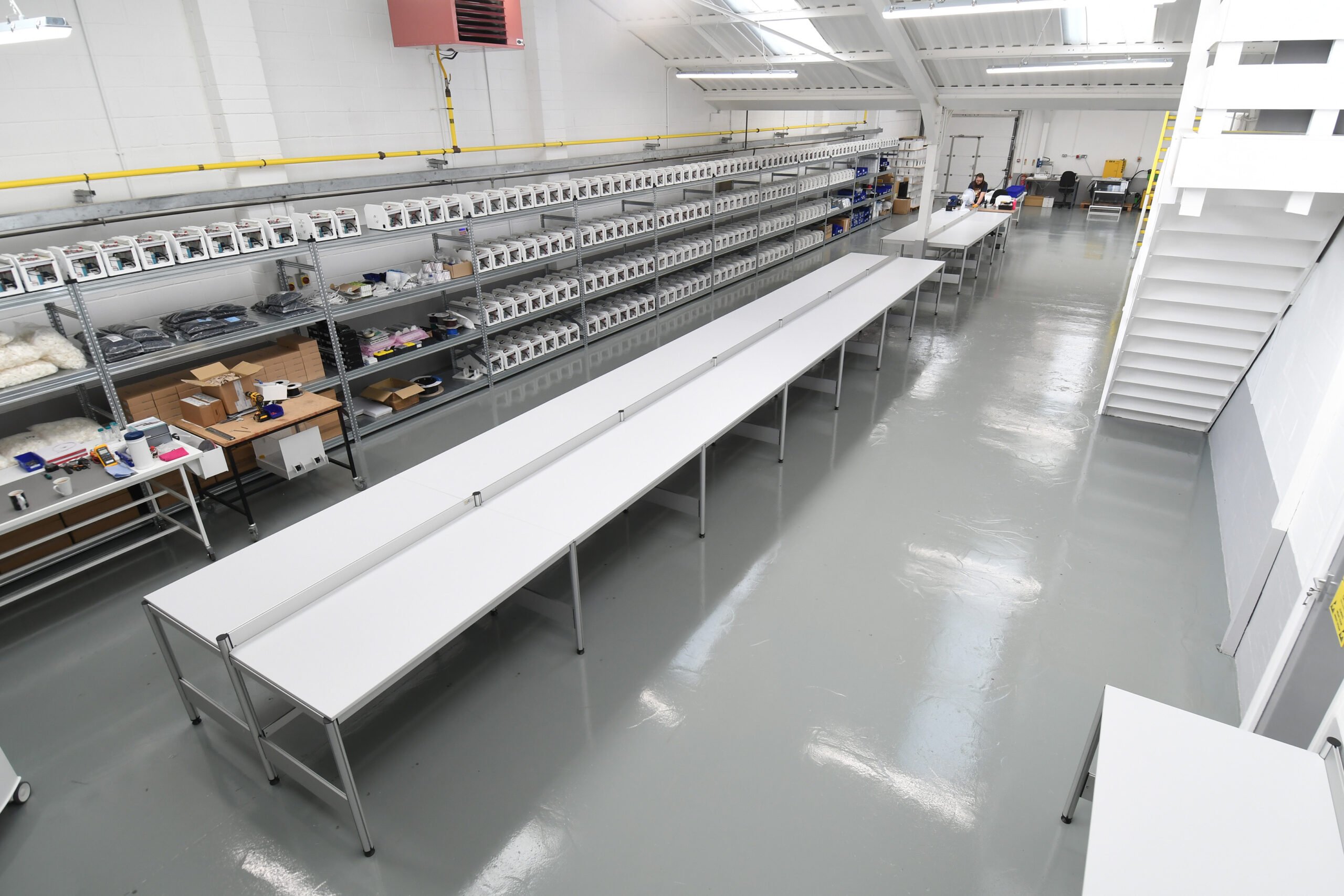

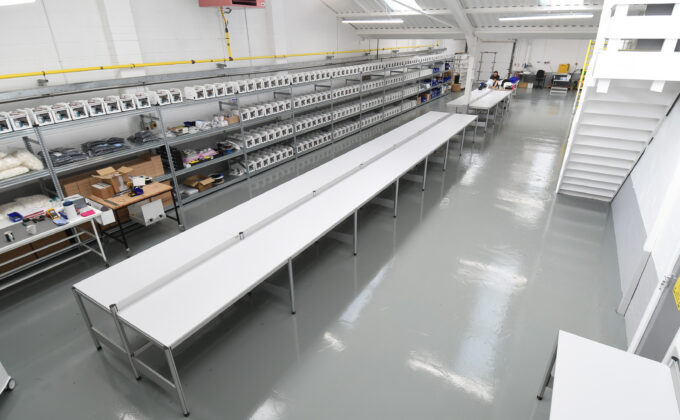

  • Design allows for continuous runs

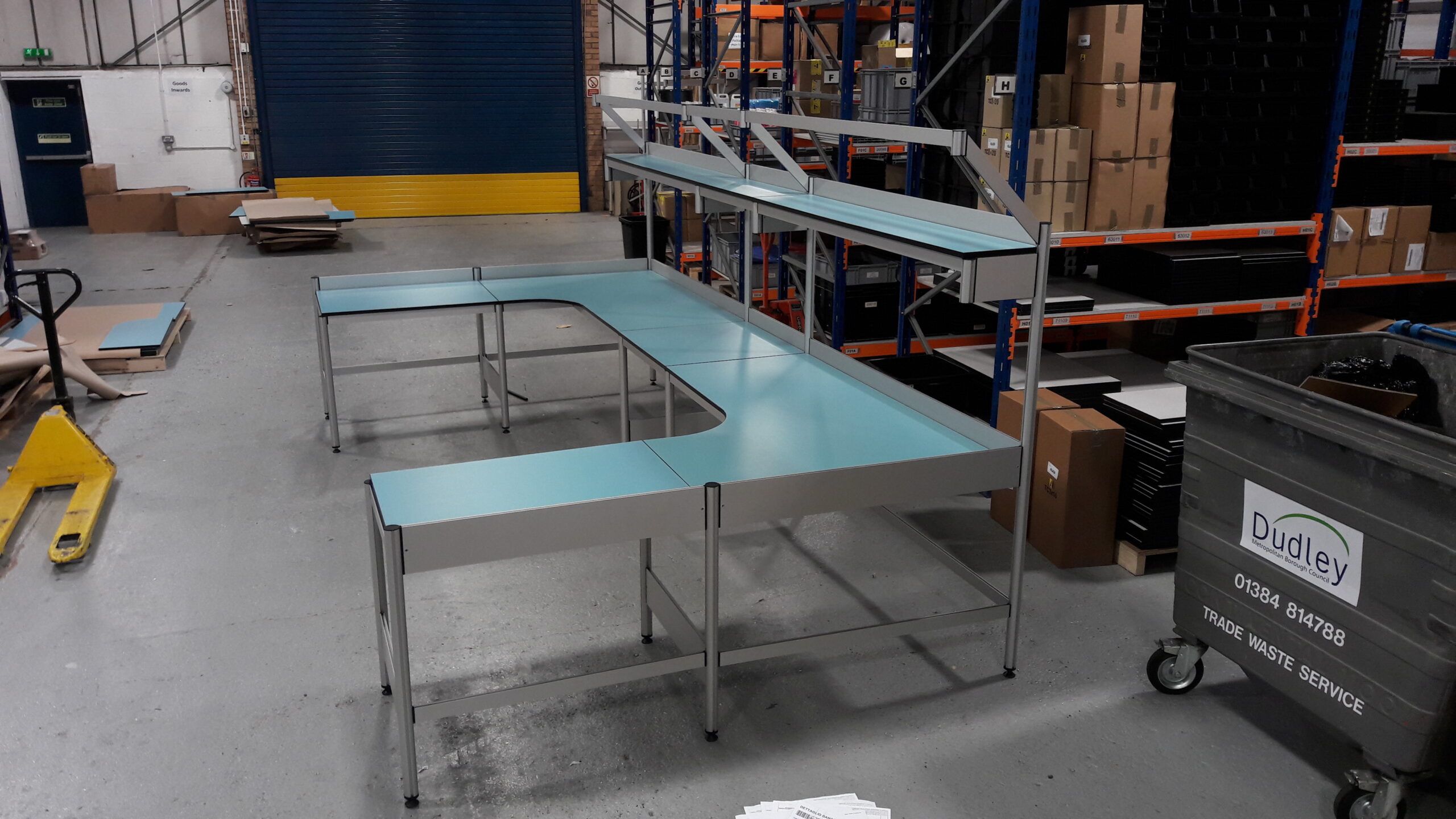

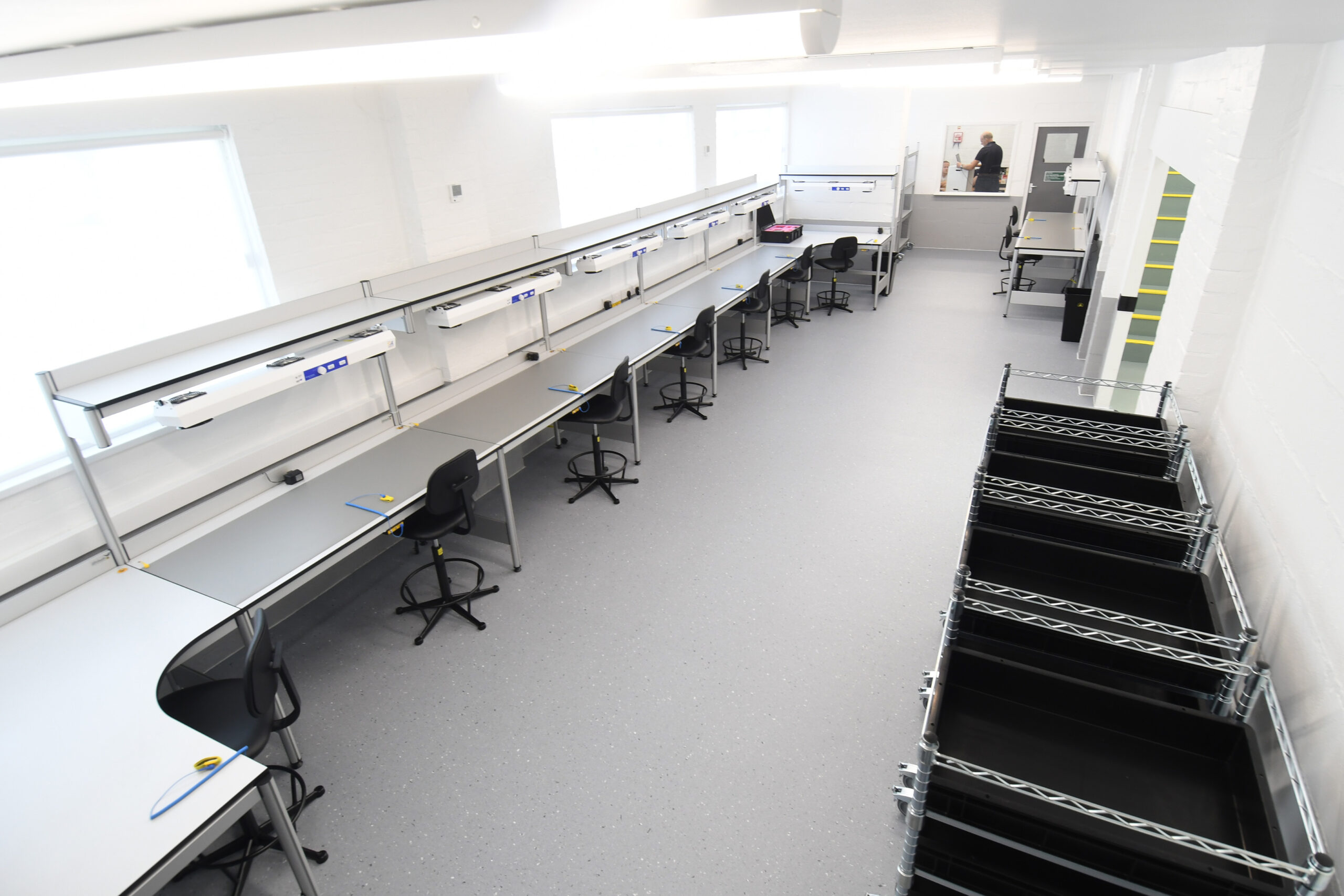

  • Single piece corner work tops

Kitehawke ESD Bench Service

KiteHawke APS CAD
  • ESD advice and technical input
  • E-mail and phone enquiries welcomed
  • Site visit to discuss requirements
  • Bespoke design service
  • Drawings prepared where required
  • No obligation quotes

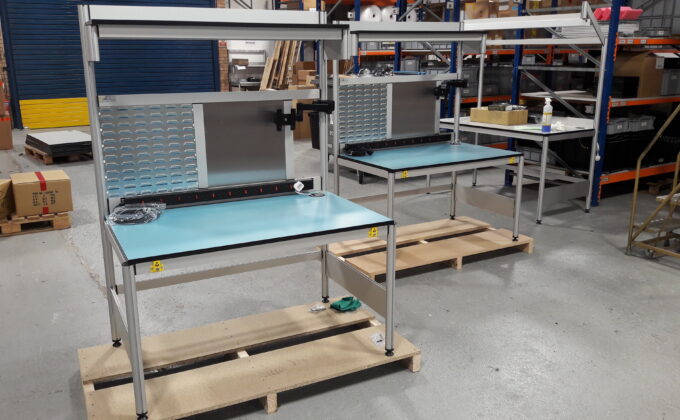

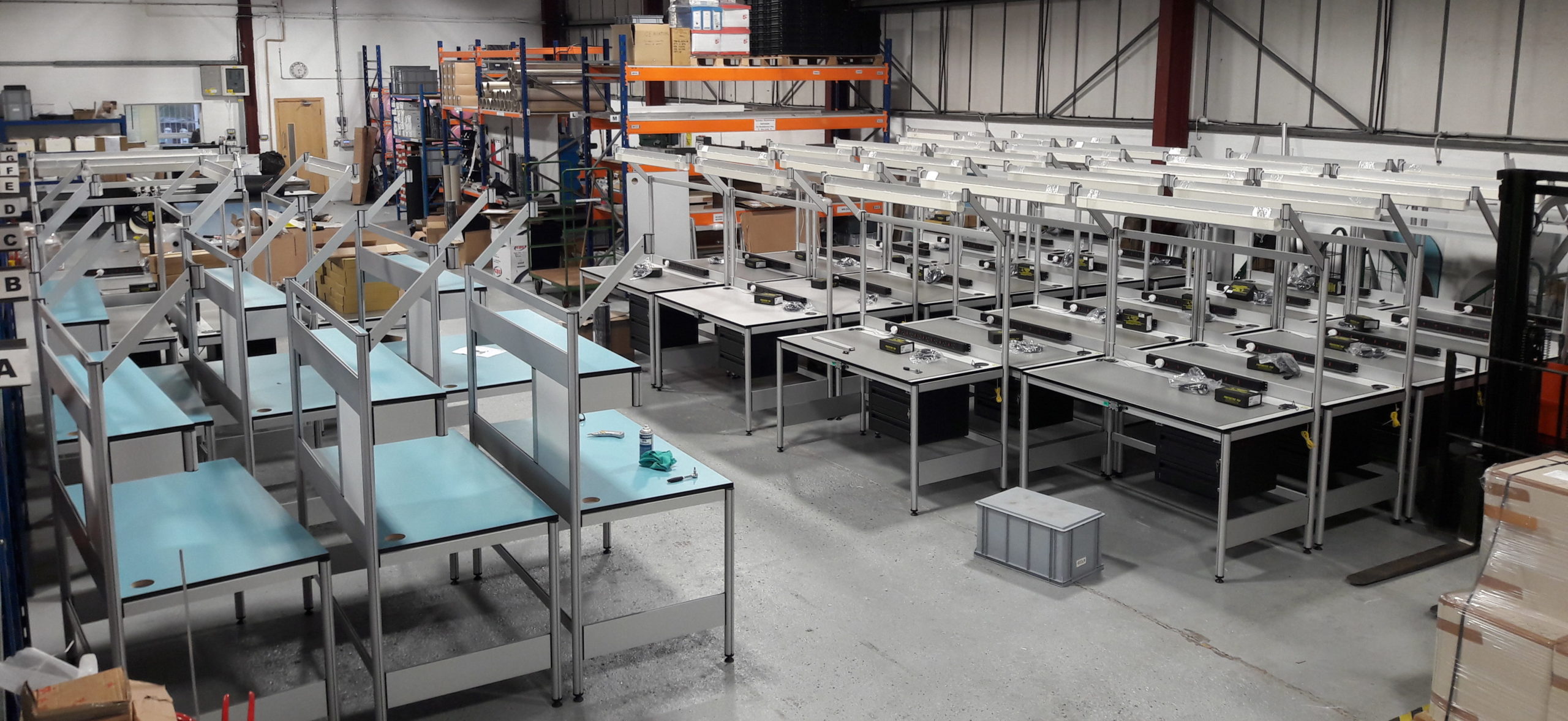

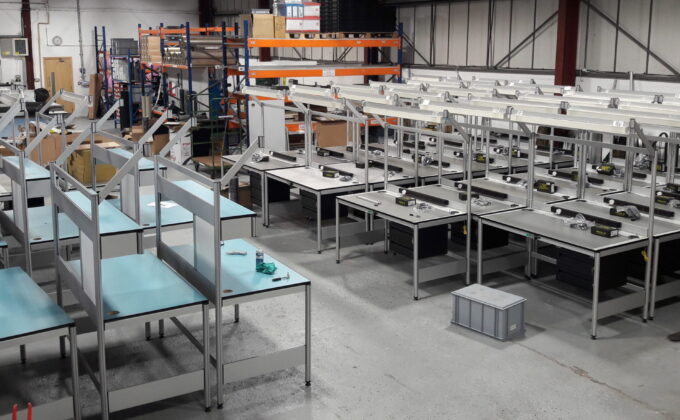

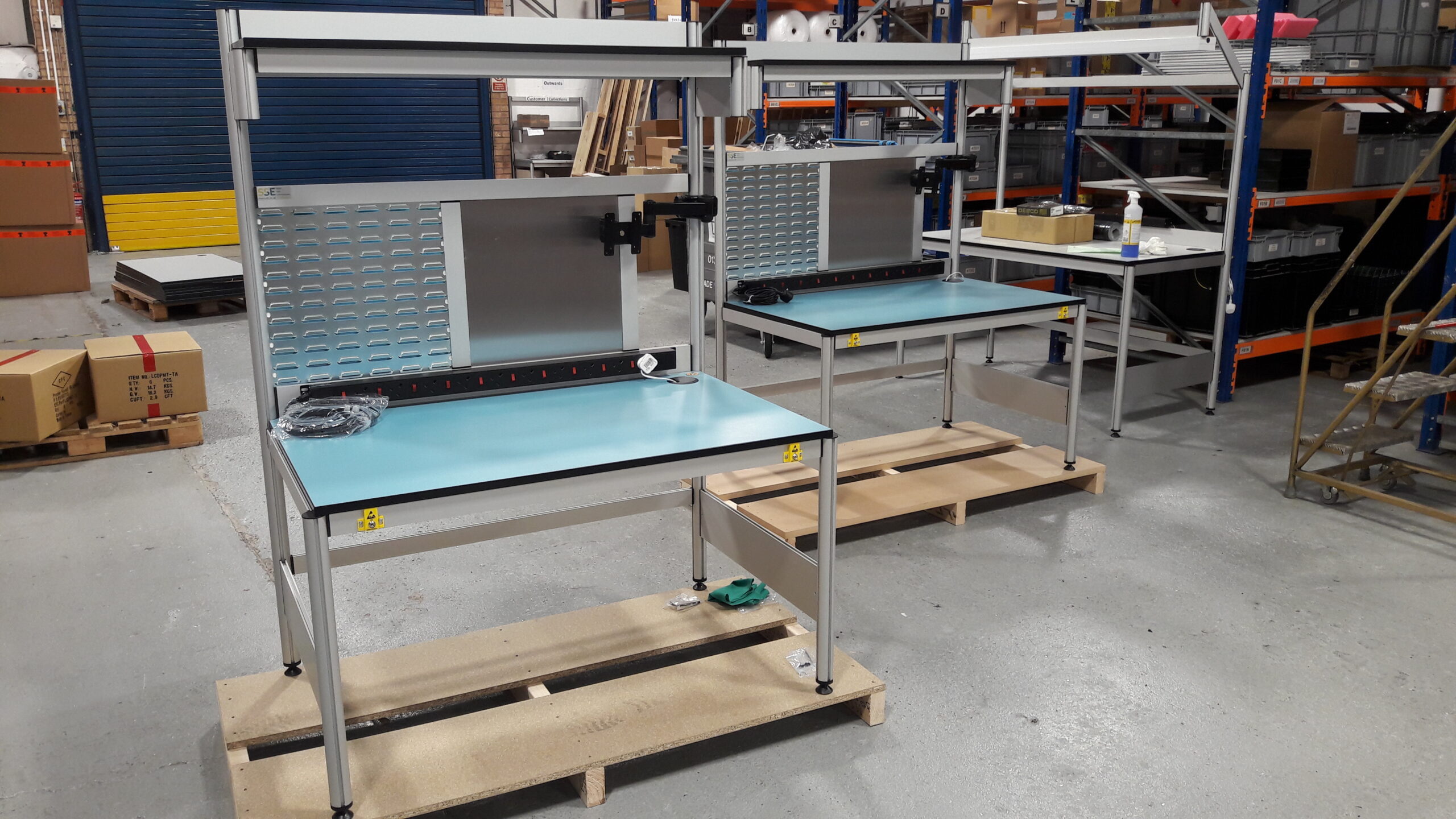

  • Benches ready assembled or installed on site
  • Installed and tested by SSE’s own installers
  • All benches ESD tested at SSE or on site
  • Certificate of conformity if requested

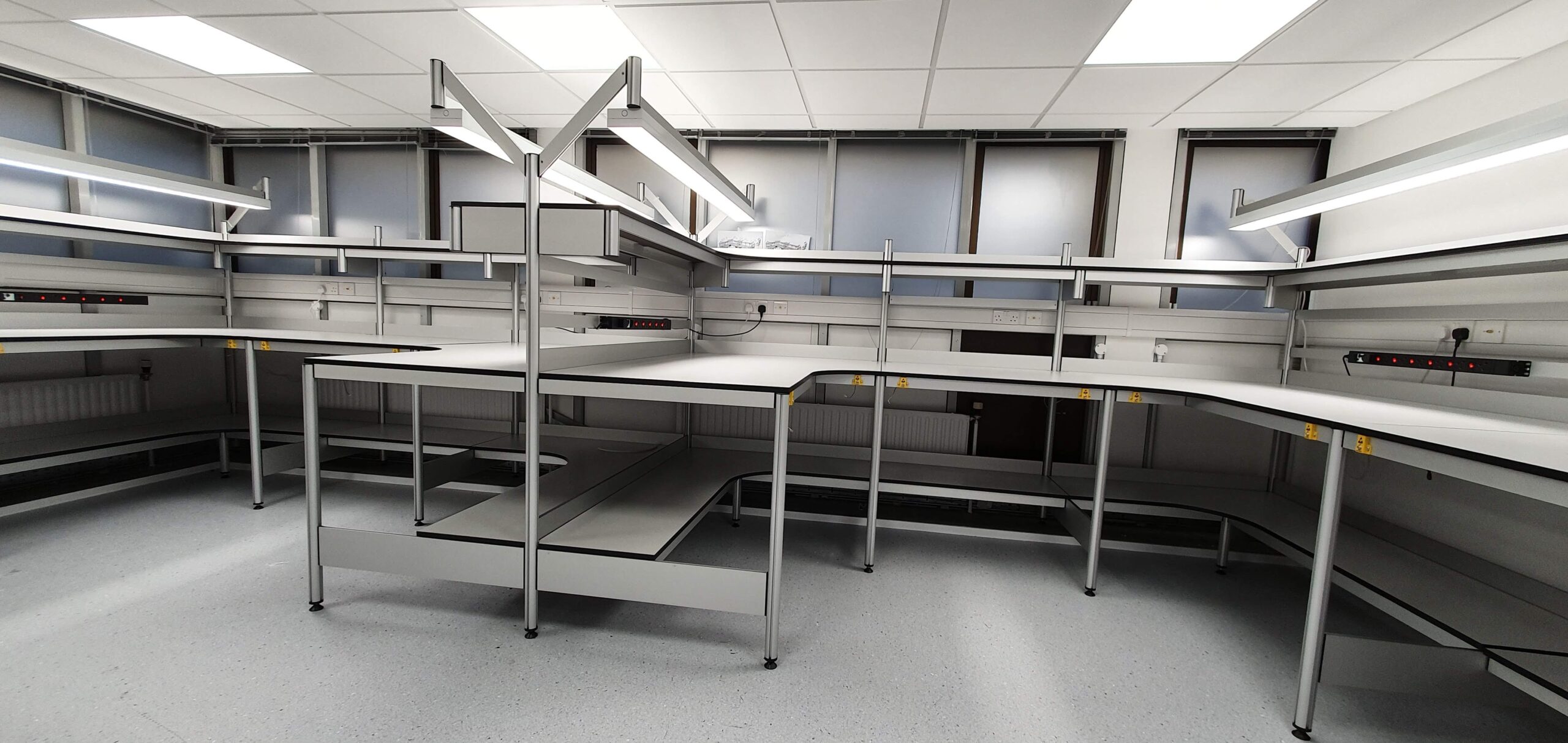

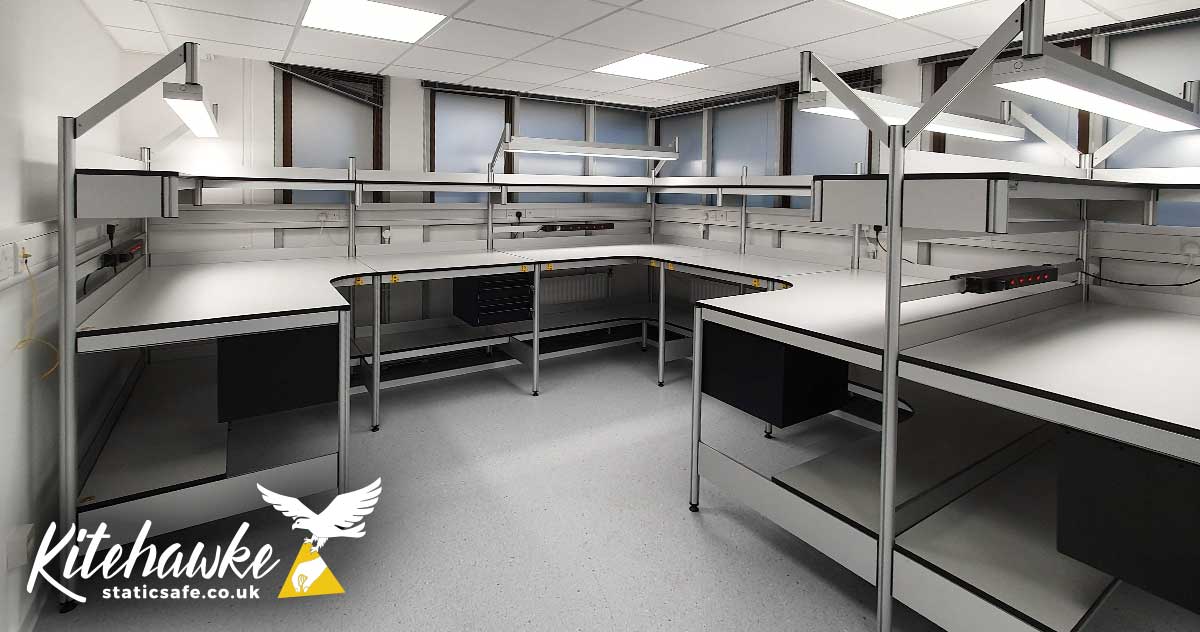

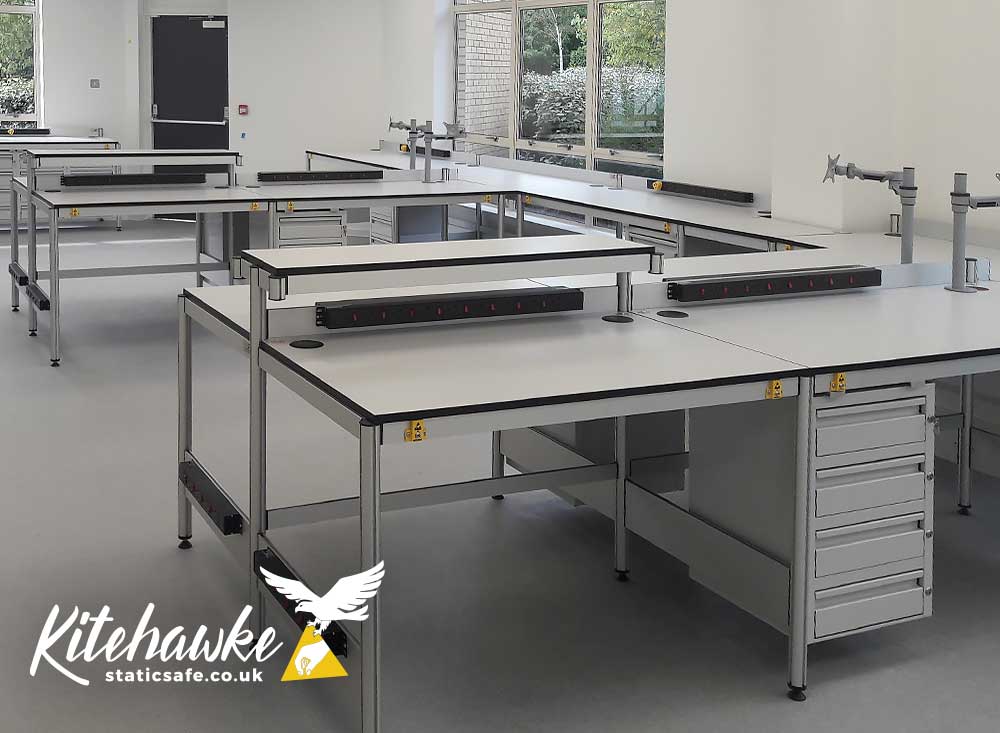

Gallery

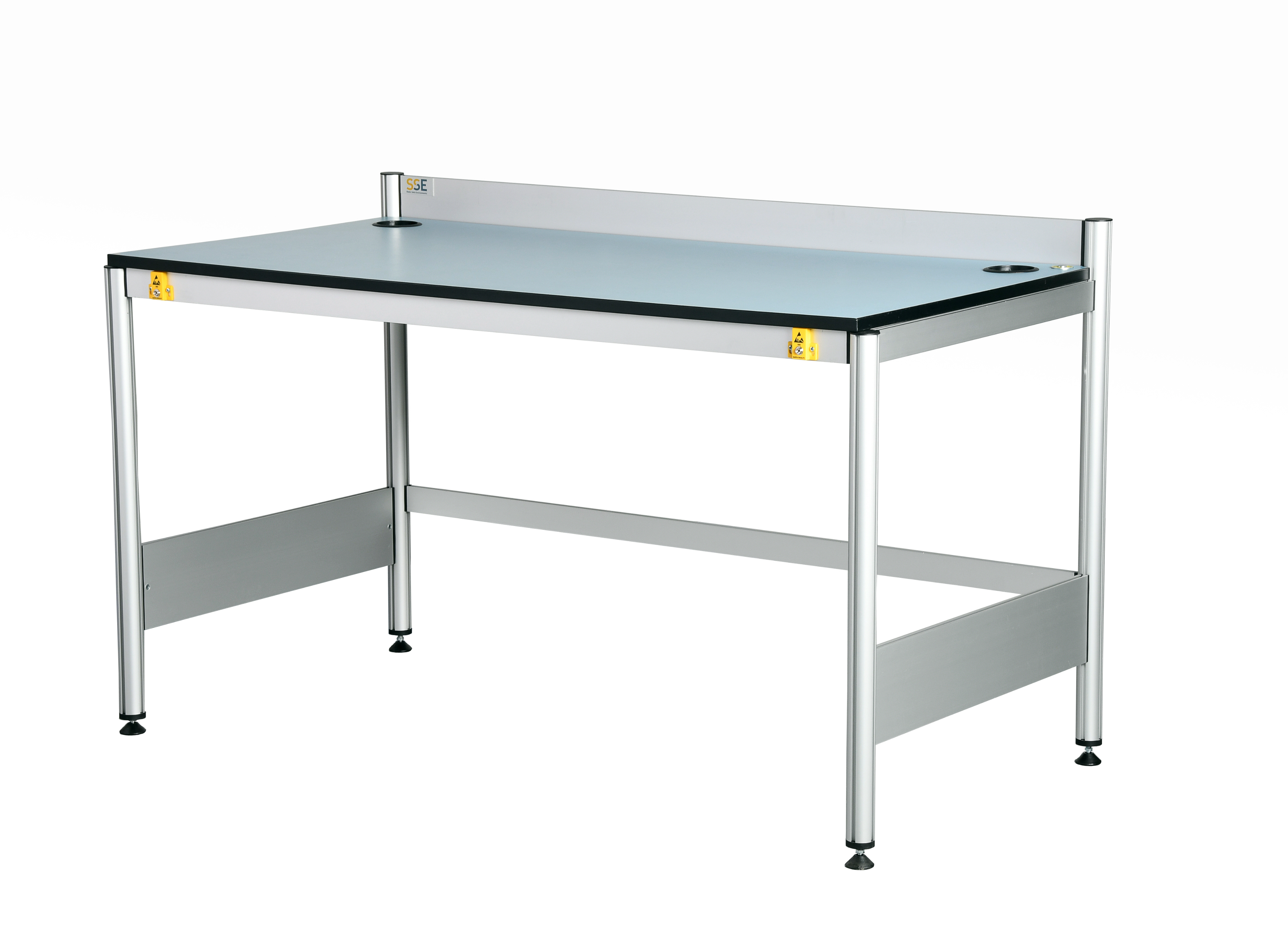

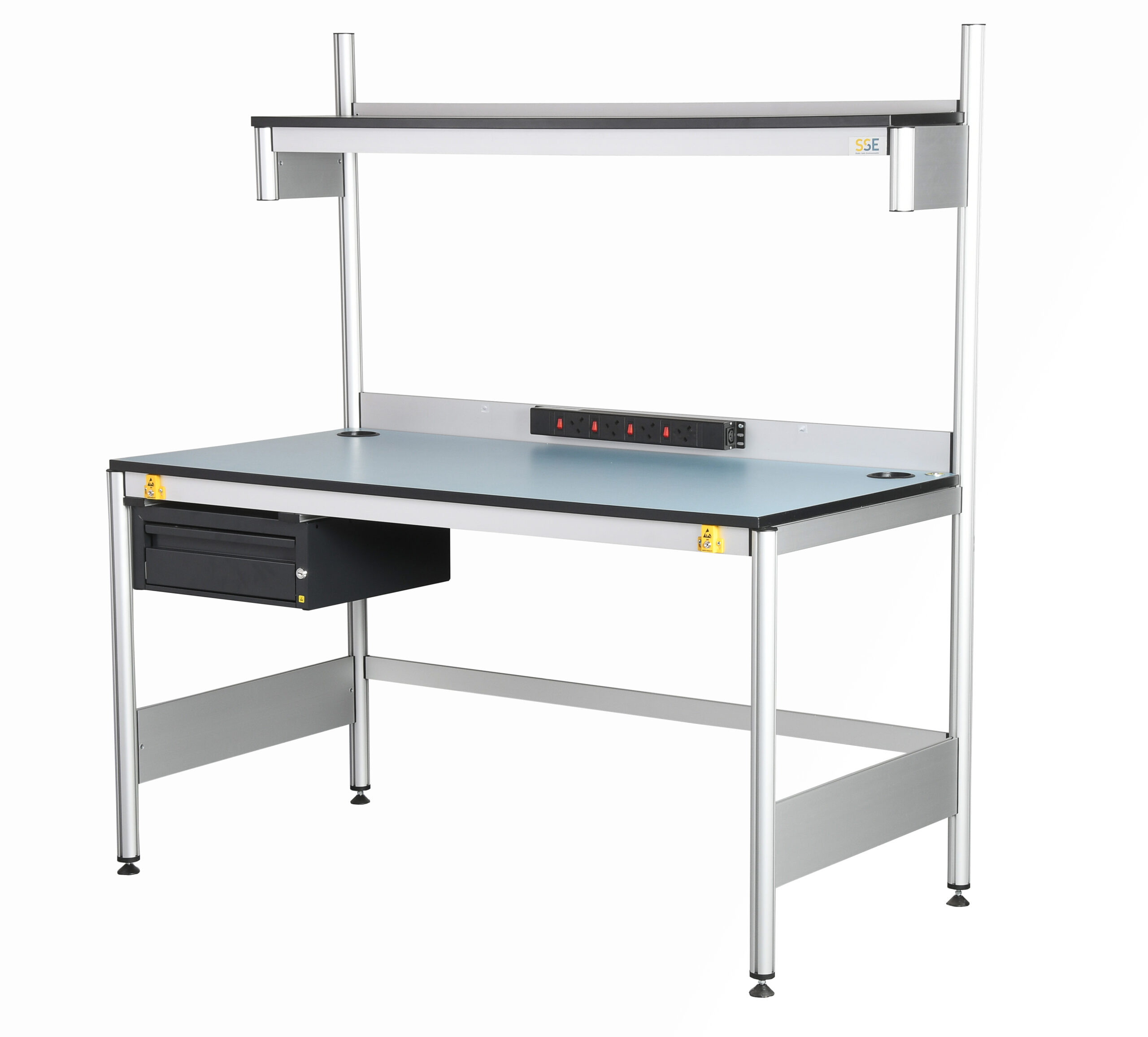

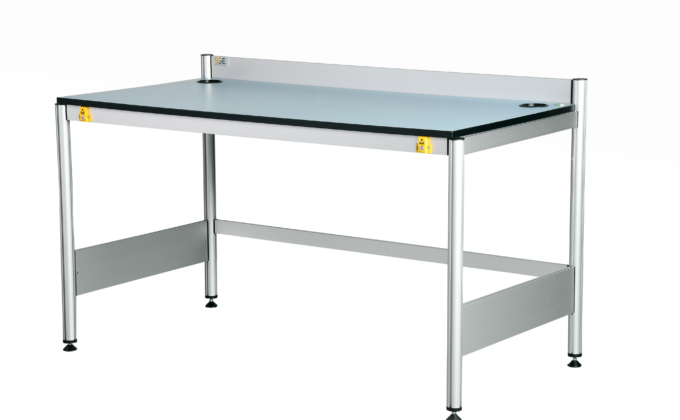

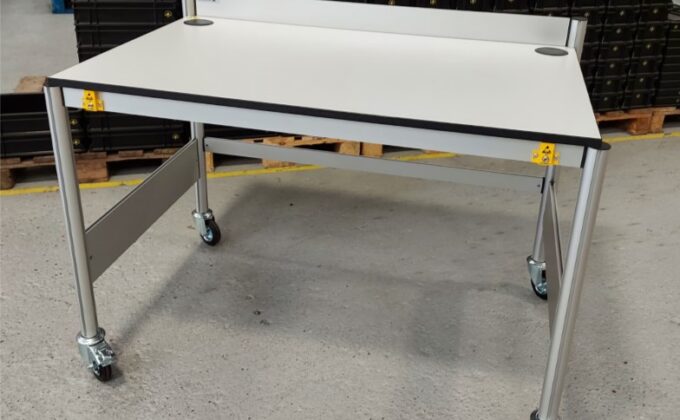

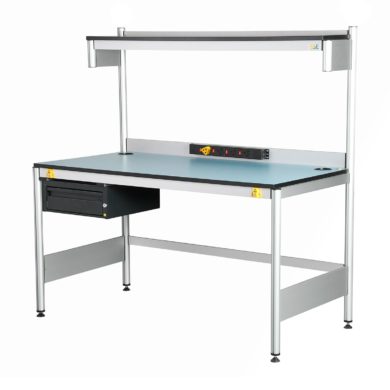

Standard Bench Options
