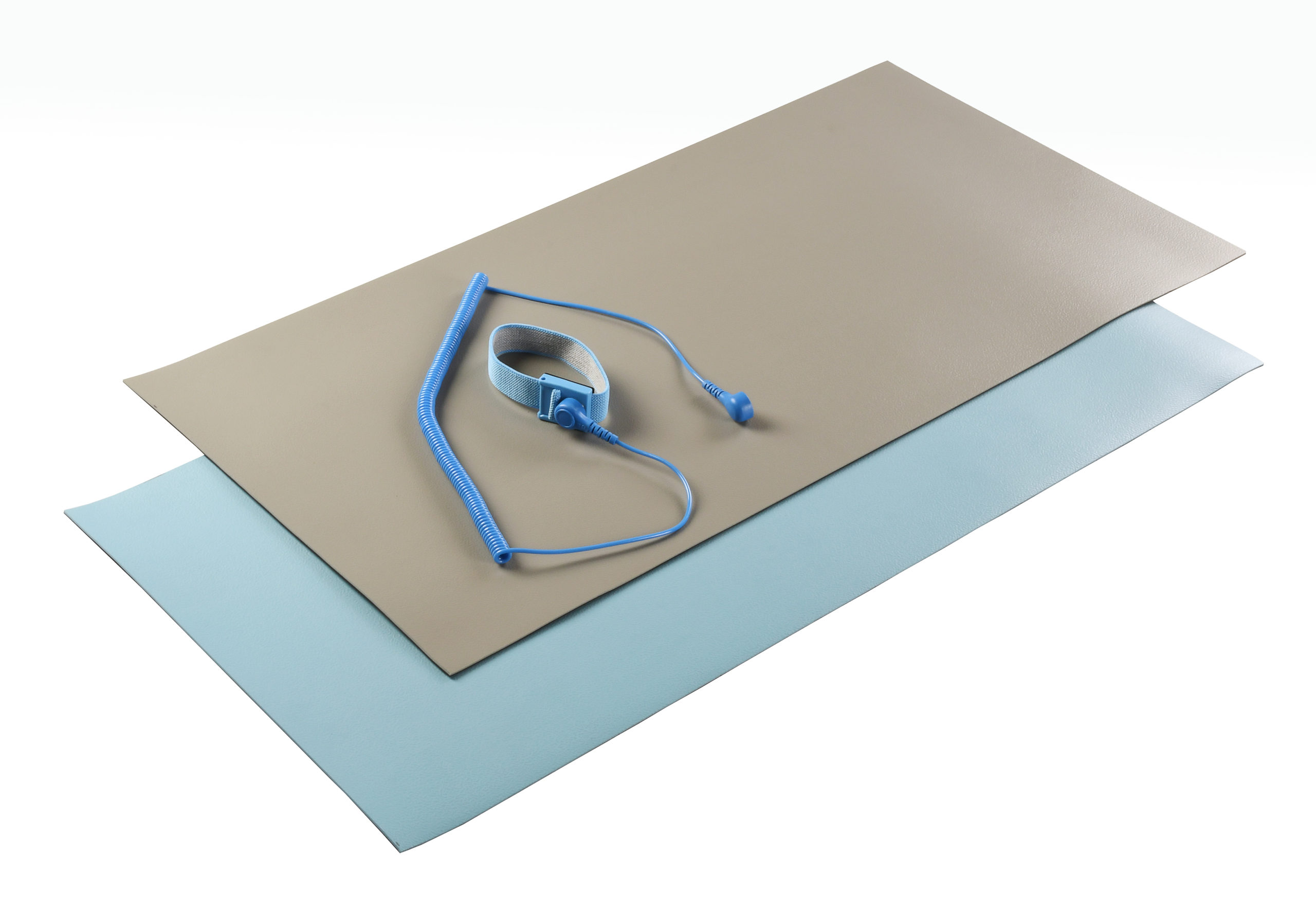

ESD Benchsaver Mats – NeoStat® C2 (anti static)

Product code: 32017z

Anti Static Table Mat – NeoStat® C2 ESD Table Mat. Anti Static Table Mat. Smaller, premium quality, static dissipative mats for covering work surfaces in electrostatic protected areas (EPAs).

NeoStat® C2 ESD Bench Saver Grounding Mats are manufactured from NeoStat® – an exceptionally tough two layer static dissipative rubber material, 2mm thick, which is easy to maintain and has a long life.

Typical resistance to ground Rgp: 106 Ω – 108 Ω

Textured top layer with excellent heat and solder resistant properties and conductive backing.

Designed for general purpose applications – either loose laid or adhered to work surfaces.

Also available: ESD Mats for Work Benches in larger sizes and full rolls

Click here  for cleaner recommended for NeoStat ESD Benchsaver mats

Please note the prices do not include the wrist band and lead, these need to be ordered separately. Click here for wrist band and lead options.


NeoStat C2 Bench Matting

Dissipative top-layer 108

Conductive bottom-layer 106

Typical resistance to ground 106 – 108

Main characteristics:

  • Reflection breaking surface to reduce glare and improve operator comfort.
  • Protection against small collisions thanks to natural resilience of rubber.
  • Prevention of sliding of delicate components thanks to the excellent friction co-efficient of the material, which is increased by the embossed surface.
  • Heating resistance: rubber does not melt and does not burn coming into contact with hot metal parts or soldering debris.
  • Chemical resistance: please ask for detailed data sheet.
  • Oil resistance: this product resists to most oils.
  • Suitable to loose laying: this product does not require application with adhesive.
  • Good resistance to scratches.
  • Excellent flexibility and comfort.

Size and colours:

  • Rolls 1.22m x 10m – 2 mm thickness (double layer); other sizes upon request.
  • Available in light grey, light blue.

Physical and Mechanical Characteristics – Dissipative coloured top layer:

  • Hardness (ISO 7619): 75 . 5 shore A.
  • Abrasion resistance (ISO 4649, method A): ≤ 200 mm3.
  • Indentation (EN 433): ≤ 0.20 mm.
  • Chemical resistance (EN 423): resistant to chemical agents normally used for maintenance.
  • Dimensional Stability (EN 434 – 6h/80°C): ≤ 0.4 %
