Portable ESD Wrist Strap Monitor

Product code: 80001

Portable ESD wrist strap monitor.

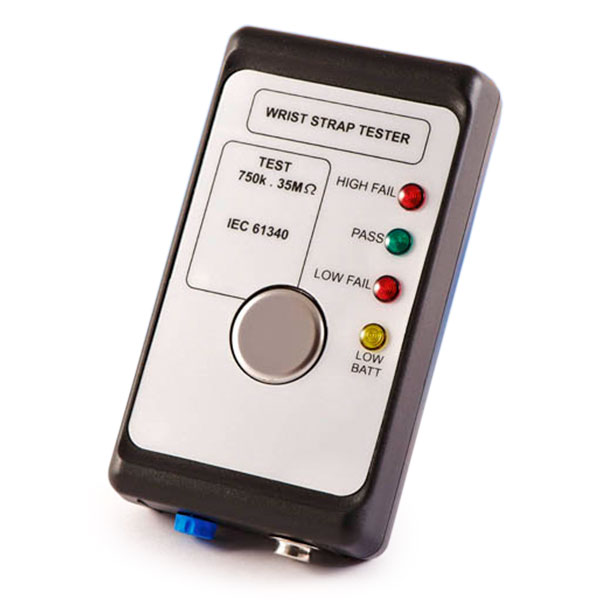

A battery operated monitor designed to check the resistance of an operator’s wrist strap and lead. To carry out a test, the wrist strap lead is plugged into the monitor and the stainless steel button is pressed. The unit has pass and high/low fail warning LEDs, an audible alarm if the wrist strap system fails and a battery low LED indicator.

Test range:

Pass between 750KΩ and 35MΩ

Fail <750KΩ and > 35MΩ

Size: 130mm x 70mm x 25mm
