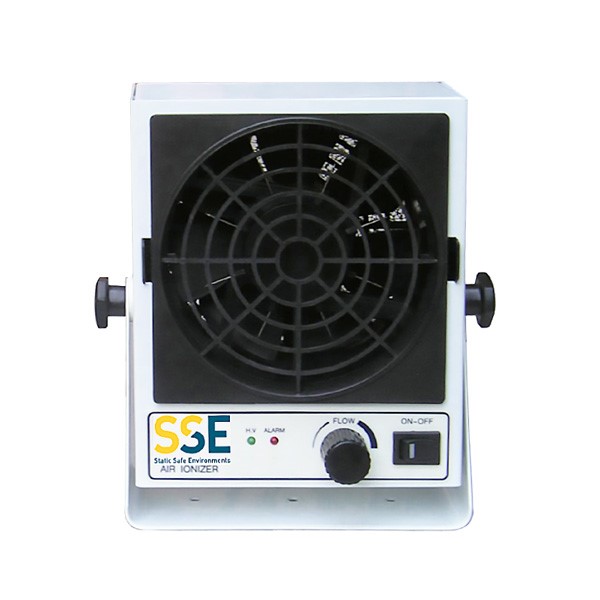

Bench Top Ioniser

Product code: 84017

A compact bench top ioniser which neutralises electrostatic charges on insulators and un-grounded conductors.

The ioniser is 170mm high x 142mm wide x 80mm deep and incorporates a stand and mounting bracket, making it ideal for localised use at ESD workstations or in confined spaces.

Simple operation with variable air volume, auto ion balance (0±5V) and an out-of-balance alarm indicator. The clip-on cover allows for easy maintenance of the discharge needle.

Supplied with a mains power lead and transformer, ready for immediate use.

Full technical specification in Product Information.

Bench Top Ioniser – Product code: 84017

Technical Specification

170mm high x 142mm wide x 80mm deep

Weight: 1.3kg

24V operation.

Power Supply: DC24V

Capacity: 10VA

HV output: AC2200V

Safety performance: Equipped with ion output monitoring system

Decay time: ca. 1.4 sec (test distance 300mm)

Ion Balance: Auto ion balance, 0±5V

Air volume: 1.3 – 3.25 m3/min

Ozone density: Less than 0.007ppm

Allowable temperature: 0 – 400C

Allowable humidity: 25 – 70% RH (no drops)

CE Approved

Browser not supported

We recommend that you use the latest version of Chrome, Edge or Firefox.

£279.00
