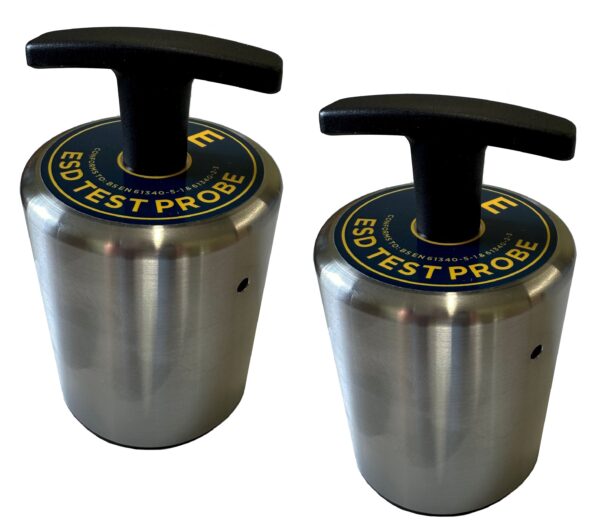

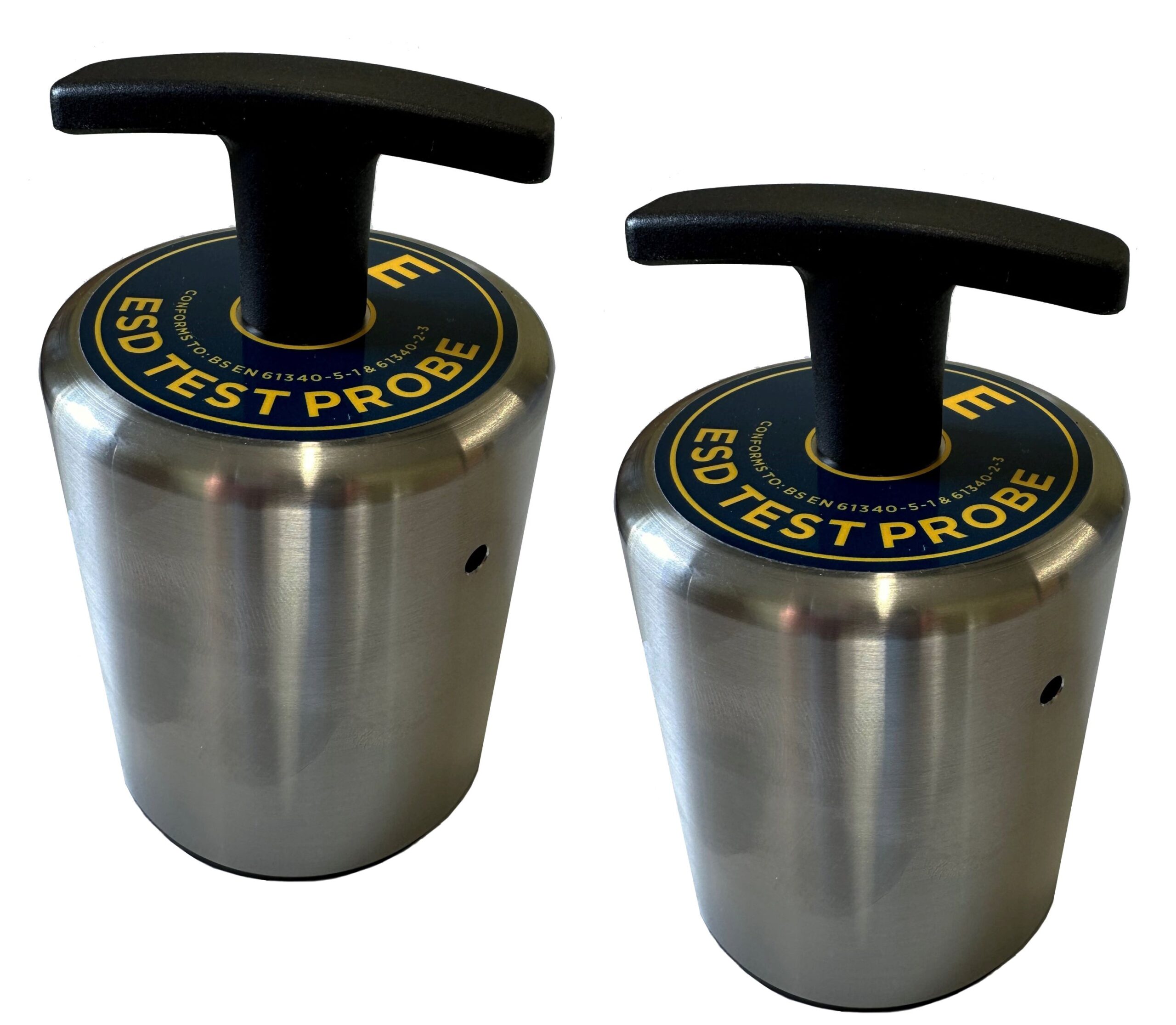

SSE ESD Test Probes (Pair)
SSE ESD Test Probes (Pair) – 2.4 KG ESD test probes designed and made by SSE to specifically meet the requirements of IEC 61340-5-1 and IEC TS 61340‑5‑4: Protection of electronic devices from electrostatic phenomena. For use with ESD Resistance Meters for testing point to point resistance and resistance to ground.
Click here for our range of resistance meters.
Browser not supported
We recommend that you use the latest version of Chrome, Edge or Firefox.
£150.00
Technical Specification
Also referred to as ESD measuring electrodes.
Used in conjunction with a resistance meter for testing point to point resistance (the resistance between 2 electrodes on an ESD dissipative or conductive surface to establish resistance of the surface) and resistance to ground (the electrical resistance from a surface such as an ESD floor or bench to the ESD ground).
- Conforms to the specifications in 61340-5-4
- Stainless steel cylindrical electrode body
- 67mm wide x 3mm thick conductive carbon filled silicon rubber contact pad
- Resistance through the probe less than 1kΩ (1,000 ohms)
- Insulative screw in handle
- 2 x 4mm banana sockets for connecting test leads
- Handle Extension (83101) and carry case (83102) accessories available
Dimensions: 69mm wide x 115mm high including the handle (80mm high excluding the handle)
Weight (each): 2.4kg
REACH & RoHS Compliant
Made in the UK
