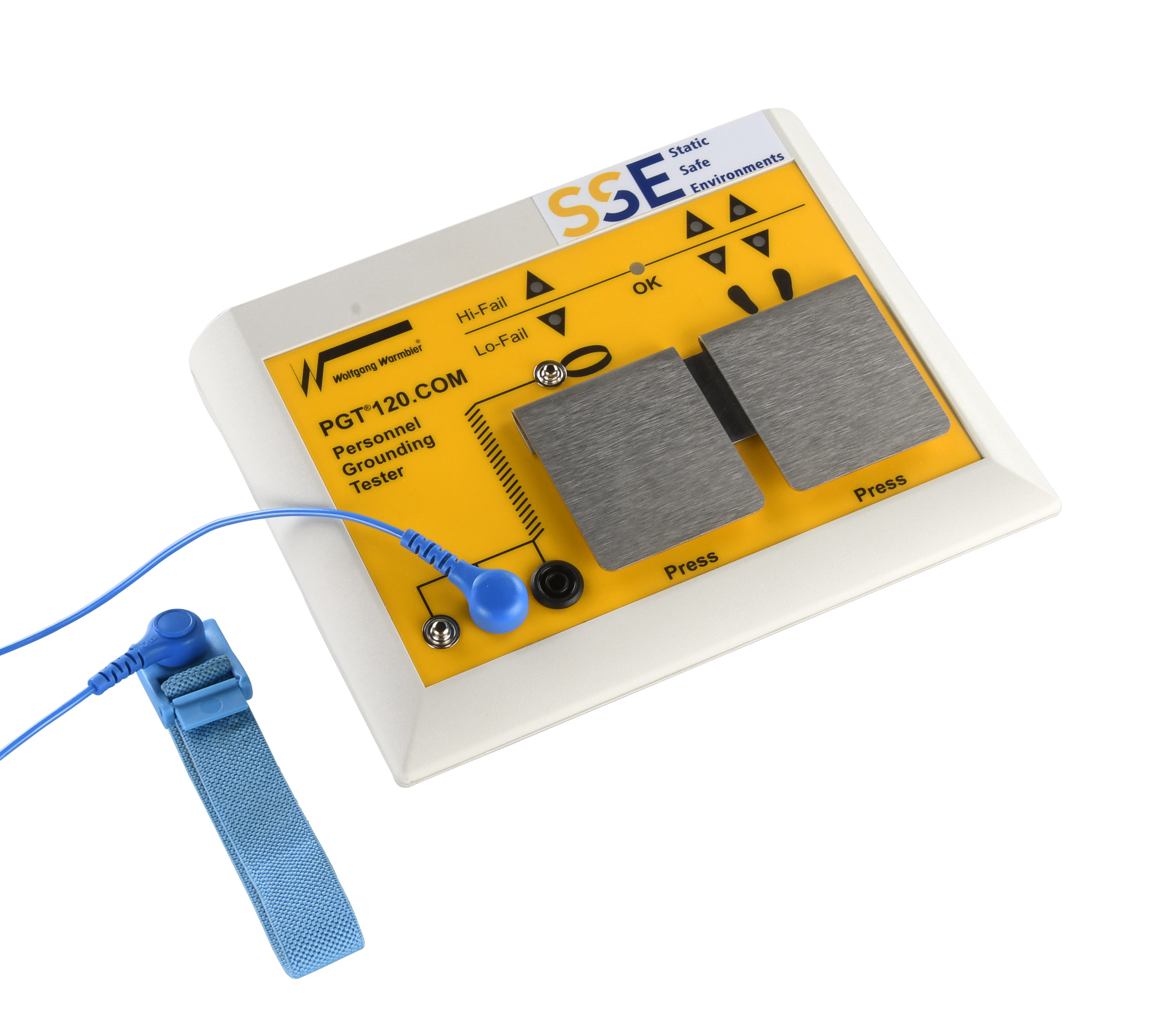

PGT120.COM Personnel Grounding Tester (with data output)
The PGT120.COM personnel grounding tester carries out wrist strap, right and left shoe testing simultaneously and the test result is indicated with audible and visual signals.
A relay with a dry contact provides a connection to a door or turnstile opening system if required.
Footwear-only measurement can be performed in series without the need to press the button (hands-free mode).
New or existing user ID cards can be used in combination with either the Data Terminal 2, Data Terminal 3 or Touch screen Data Terminal and the PDT120.COM software so that test and attendance data is logged. Access to different areas can be controlled and limits can be simply adjusted by dip switches on the back of the tester.
Supplied with a footplate, full operating instructions, calibration certificate and UK power supply.
